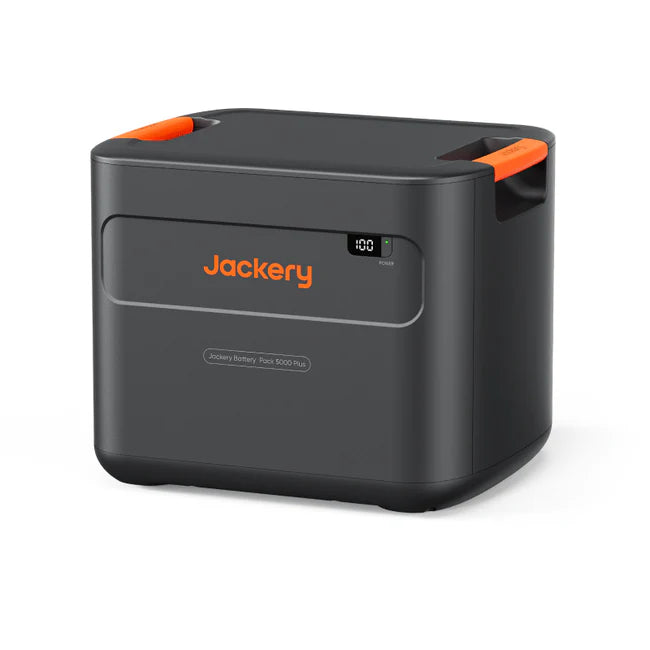

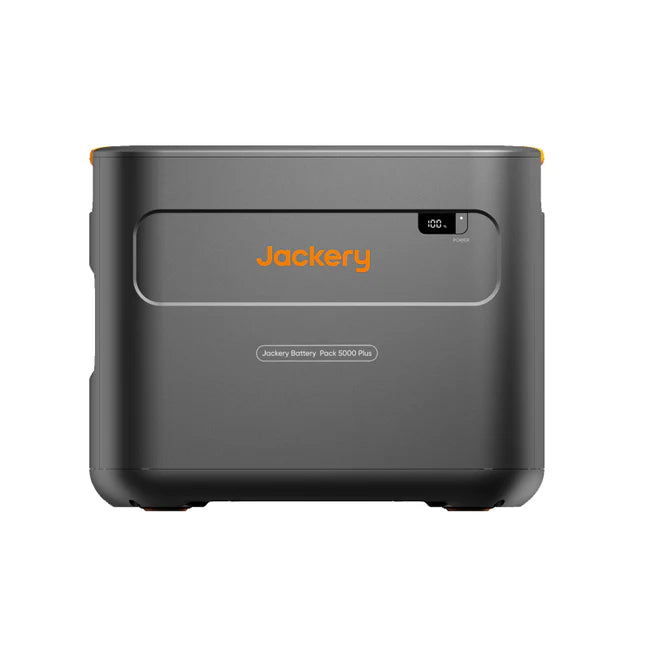

The Jackery Battery Pack 5000 Plus delivers massive 5040Wh of reliable, long-lasting power in a compact, durable form. Built with advanced LiFePO4 (LFP) cells and CTB structural technology, it offers over 4000 charge cycles while retaining more than 70% capacity—ideal for off-grid living, RV travel, and emergency backup.

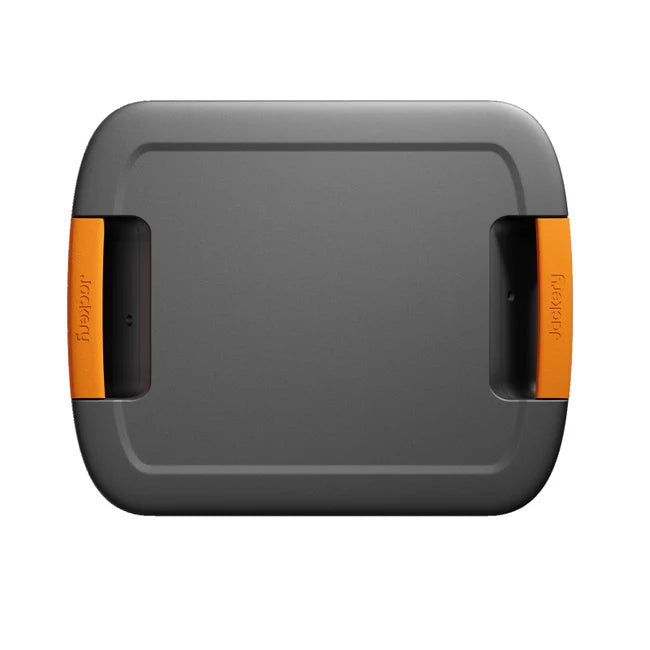

Engineered for performance in harsh environments, it operates down to -15°C (5°F) and features a dual-handle design for easy portability. Certified to UL1973 standards, it includes a smart BMS, fireproof construction, and shockproof housing for maximum safety.
Key Specs:
Capacity: 5040Wh (45Ah / 112V DC)
Battery Type: LiFePO4 (LFP)
Weight: 81.57 lbs (37 kg)
Size: 16.5 × 13.5 × 13.2 in
Cycle Life: 4000+ cycles (70% capacity retention)
Operating Temp: -15°C–45°C (5°F–113°F)
Input: 80.5V–126V⎓41A Max
Output: 80.5V–126V⎓98A Max
Protection: Smart BMS, fireproof, shockproof, IP20
Warranty: 5 Years
Compatible only with the Jackery Explorer 5000 Plus, this expandable battery delivers dependable, safe, and efficient power wherever you need it.
| SPECIFICATIONS | Jackery Battery Pack 5000 Plus |
|
Model No. |
JBP-5000A (Only use together with Jackery Explorer 5000 Plus) |
|
Capacity |
45Ah/112V DC (5040Wh) |
|
Cell Chemistry |
LiFePO4 |
|
Weight |
About 81.57 lbs/37 kg |
|
Dimension |
16.5 x 13.5 x 13.2 in/41.8 x 34.4 x 33.6 cm |
|
Cycle Life |
4000 cycles to 70%+ capacity |
|
Maximum Short Circuit Current and Duration |
2600A/5ms |
|
Ingress Protection |
IP20 |
|
DC Expansion Port (Input) |
80.5V-126V⎓41A Max |
|
DC Expansion Port (Output) |
80.5V-126V⎓98A Max |
|
Charge Temperature |
0°C~45°C (32°F~113°F) |
|
Discharge Temperature |
-15°C~45°C (5°F~113°F) |
|
Package List |
Jackery Battery Pack 5000 Plus*1 |
|
User Manual |
