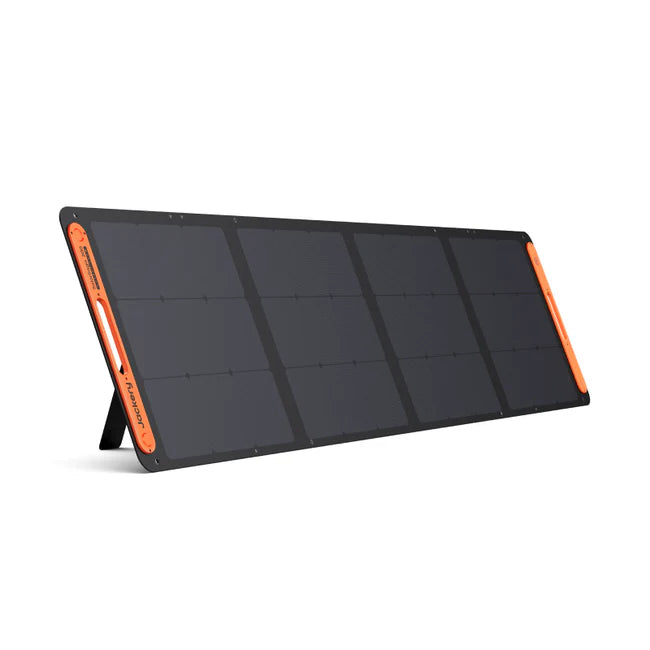

Jackery SolarSaga 200W Solar Panel | Foldable, Bifacial, IP68 Waterproof | 21-0002-000063

Jackery SolarSaga 200W Solar Panel | Foldable, Bifacial, IP68 Waterproof | 21-0002-000063

Standard Shipping: 5–10 business days.

by Jackery
$699.00

Notify me when back in stock

Description

The Jackery SolarSaga 200W Solar Panel delivers fast, efficient charging with durable ETFE-laminated protection and an IP68 waterproof rating. Operating reliably from -4°F to 149°F, it’s lightweight, foldable, and portable perfect for off-grid setups, camping, RVs, and home backup systems. Features adjustable kickstands for maximum sunlight capture and long-term performance.

Key Specs:

  • Power Output: 200W
  • Efficiency: High conversion rate for faster charging
  • Design: Foldable, portable, with adjustable kickstands
  • Durability: ETFE-laminated, IP68 waterproof, corrosion- and heat-resistant
  • Operating Temp: -4°F to 149°F (-20°C to 65°C)
  • Battery Grid: Rear-mounted design prevents cracking for longer lifespan
  • Package Includes:

      • SolarSaga 200W Panel ×1

      • 3m multifunction cable (USB ports) ×1

      • DC8020→DC7909 adapter ×1

      • User manual ×1

  • Warranty: 3-Year Standard + 2-Year Automatic Extension (via official site)
Specs

SolarSaga 200W Solar Panel

General

  • Weight:13.67 lbs ± 0.66 lbs  (6.2 kg±0.3 kg)
  • Protection Class Against Electric Shock:Class II
  • Waterproof:IP68
  • Operating Temperature Range:-4~149℉（-20~65°C）
  • Warranty:3+2 Years

Ports

  • USB-A Output:5V⎓2.4A
  • USB-C Output:5V⎓3A

Solar

  • Maximum System Voltage:60V
  • Maximum Reverse Current:15A
  • Bifaciality Coefficient (back/front):Pmax>30%, Voc>95%, Isc>32%
  • Voltage Temperature Coefficient:-0.268%/°C
  • Power Temperature Coefficient:-0.29%/°C

STC (1000W/㎡, 25℃, AM 1.5)

  • Peak Power (Pmax):200W±5%
  • Open Circuit Voltage (VOC):24.8V±5%
  • Short Circuit Current (Isc):11.2A±5%
  • Power Voltage (Vmp):20V±5%
  • Power Current (Imp):10A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

  • Peak Power (Pmax):208W±5%
  • Open Circuit Voltage (Voc):25V±5%
  • Short Circuit Current (Isc):11.4A±5%
  • Power Voltage (Vmp):20.2V±5%
  • Power Current (Imp):10.3A±5%

Dimensions

  • Folded:24.21 x 21.73 x 1.57 in (615 x 552 x 40 mm)
  • Unfolded:92.13 x 21.73 x 0.98 in (2340 x 552 x 25 mm)
Notice 1. Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.

2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

3. Avoid contact with corrosive substances during storage, keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
Manual

Download

Jackery SolarSaga 200W Solar Panel - 666D Manual

Jackery Solar Generator Connection Guide



FAQ

1. Why the solar can not produce 200W power when charging to Jackery power station?

As you know , the solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 200W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.

2. Is the solar panel waterproof?

It is rated as IP68 water-resistant, offering protection against water splashes (Please avoid exposing it to heavy rain or submerging it in water). The pocket's zippers are designed to secure power cords and cover the power port.

3. How to clean the solar panel surface?

We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

Videos: 

 
