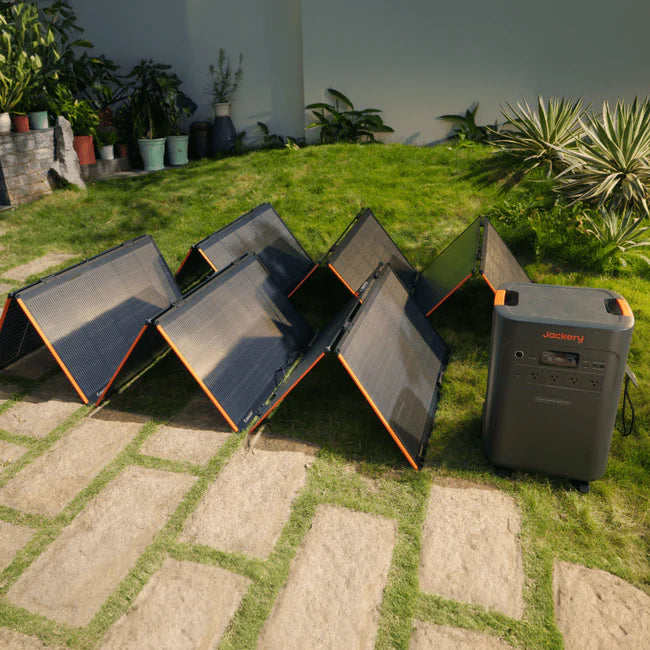

The Jackery SolarSaga 500X delivers a powerful and flexible solar charging solution, consisting of six SolarSaga 85W panels, each usable individually or as a complete system. Designed for both outdoor and home applications, it offers a 500W high power output for fast, dependable solar charging. The easy-to-assemble modular design allows for quick DIY setup, fitting various power needs with seamless convenience.
Built for rugged outdoor performance, the SolarSaga 500X withstands temperatures from -40°C to 85°C and features an IP68 waterproof rating for all-weather durability. Its compact, portable, all-in-one design makes it easy to transport, providing reliable power wherever it’s needed.
The SolarSaga 500X is compatible with Jackery Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2. To maximize output, do not connect more than six 85W panels in parallel to a single DC8020 input port. To extend distance between the panels and power station, Jackery Anderson Extension Cables can be purchased separately.
Each unit is backed by a 5-year warranty, ensuring long-lasting reliability and performance for off-grid power users.
Key Features:
- 500W total output with six individual 85W panels
- Modular DIY setup for quick, flexible assembly
- IP68 waterproof, -40°C to 85°C temperature range
- Compact, portable all-in-one design
- Compatible with Explorer 5000 Plus / 3000 Pro / 2000 Plus / 1000 Plus / 1000 V2
- 5-year warranty for reliable long-term use
Specs
SolarSaga 500 X
General
- Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
- Protection Class Against Electric Shock: Class II
- Waterproof: IP68
- Operating Temperature Range: -40~185℉（-40~85℃）
- Warranty: 5 Years
Solar
- Maximum System Voltage: 600V DC
- Maximum Reverse Current: 15A
- Bifaciality Coefficient (back/front): Pmax>80%，Voc>97%，Isc>80%
- Voltage Temperature Coefficient: -0.26%/℃
- Power Temperature Coefficient: -0.32%/℃
STC (1000W/㎡, 25℃, AM 1.5)
- Peak Power (Pmax): 500W±5%
- Open Circuit Voltage (VOC): 48.5V±5%
- Short Circuit Current (Isc): 13.02A±5%
- Power Voltage (Vmp): 41.7V±5%
- Power Current (Imp): 12.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
- Peak Power (Pmax): 545W±5%
- Open Circuit Voltage (Voc): 49.2V±5%
- Short Circuit Current (Isc): 13.86A±5%
- Power Voltage (Vmp): 42.5V±5%
- Power Current (Imp): 12.84A±5%
Dimensions
- Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
- Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Manual
Download
SolarSaga 500 X User Manual
Jackery Solar Generator Connection Guide
