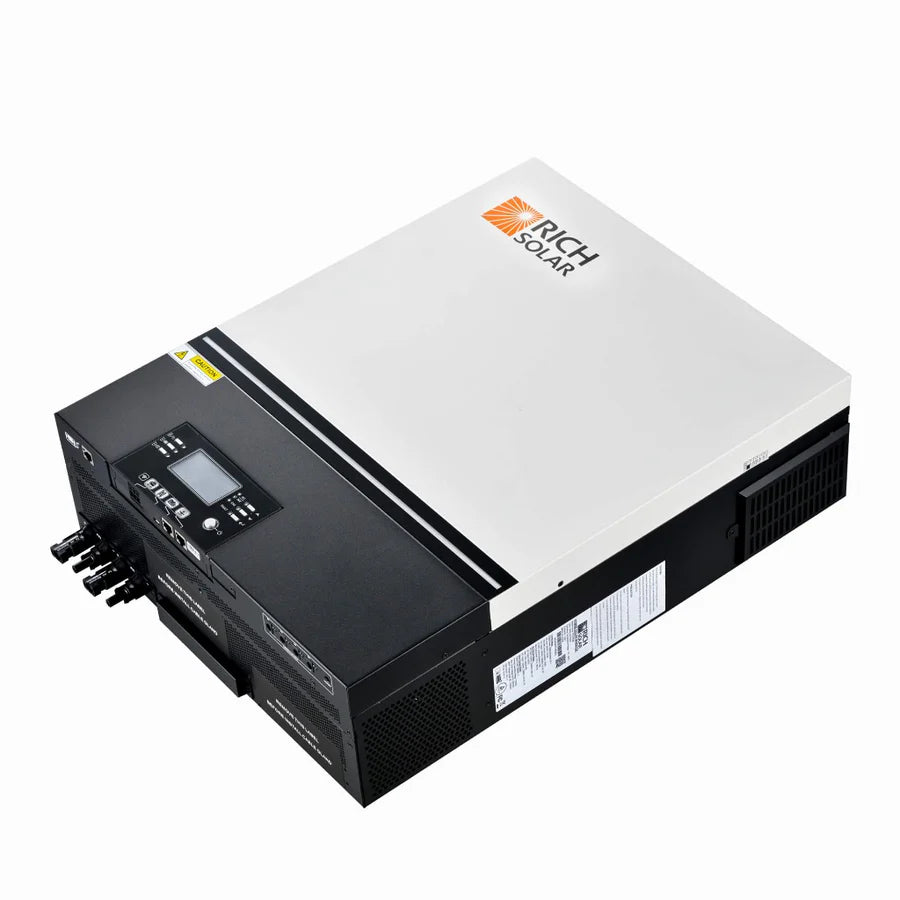

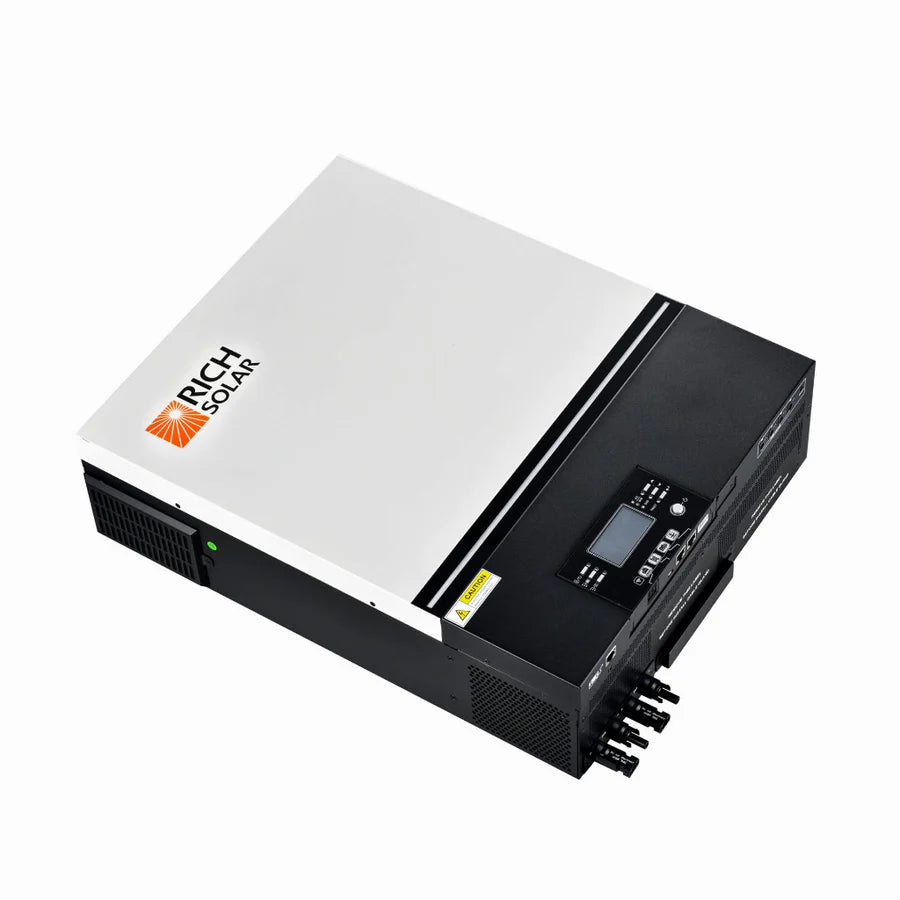

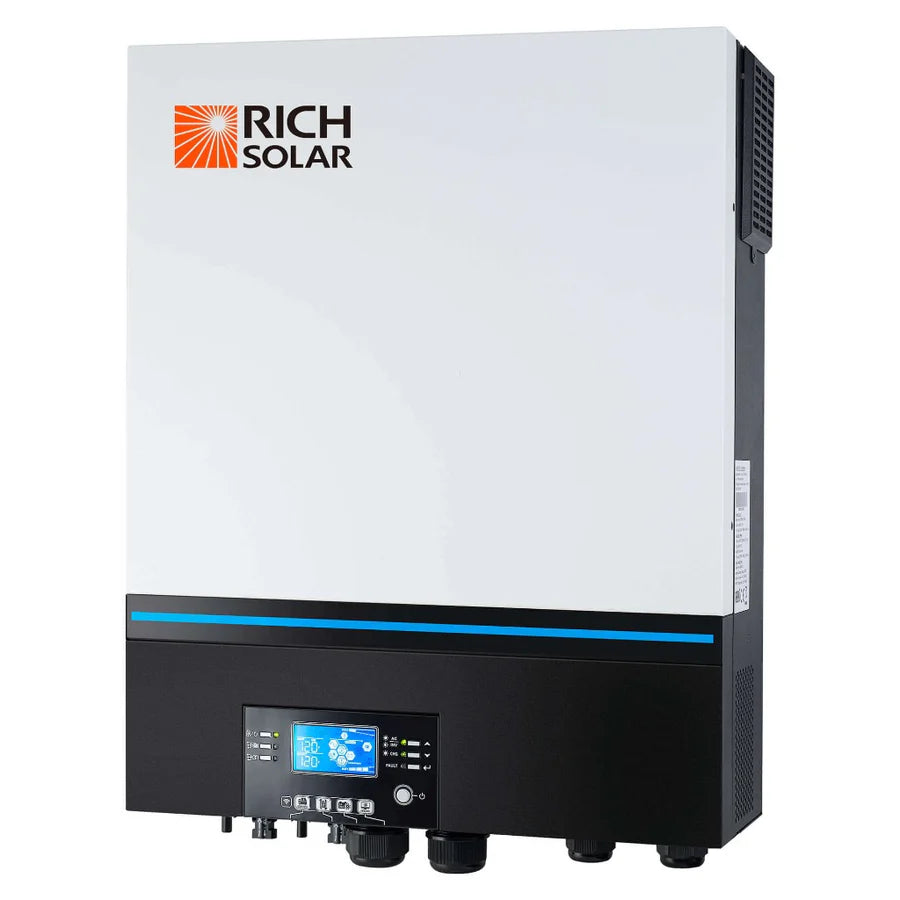

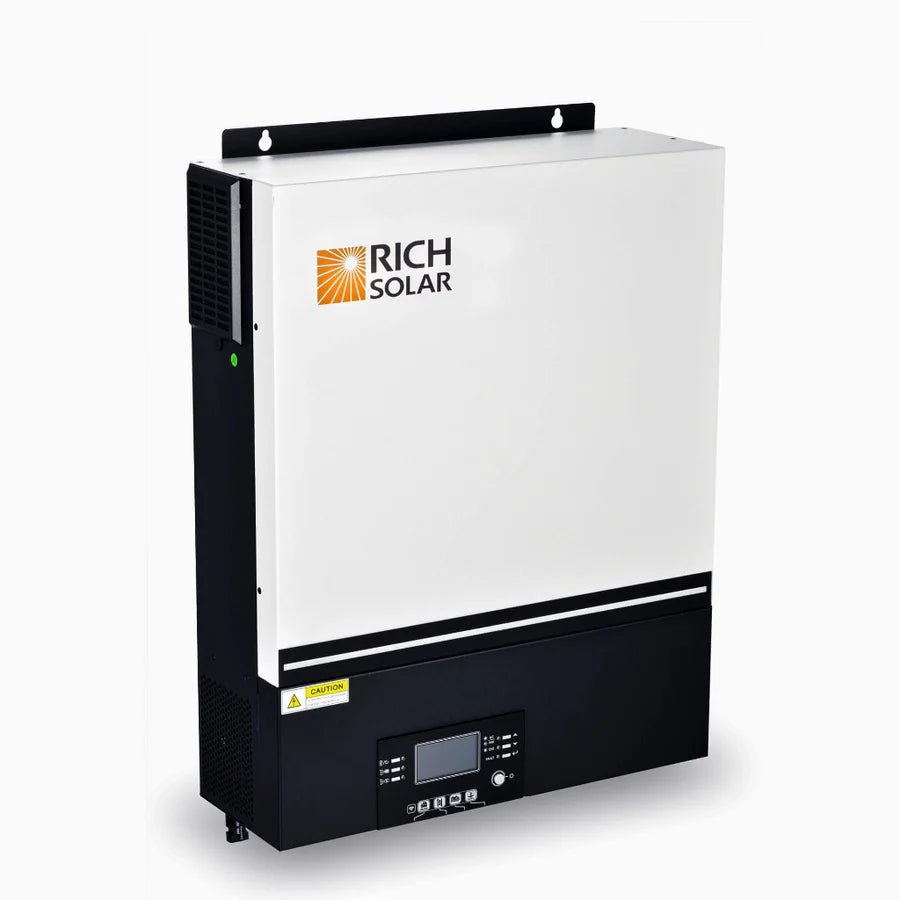

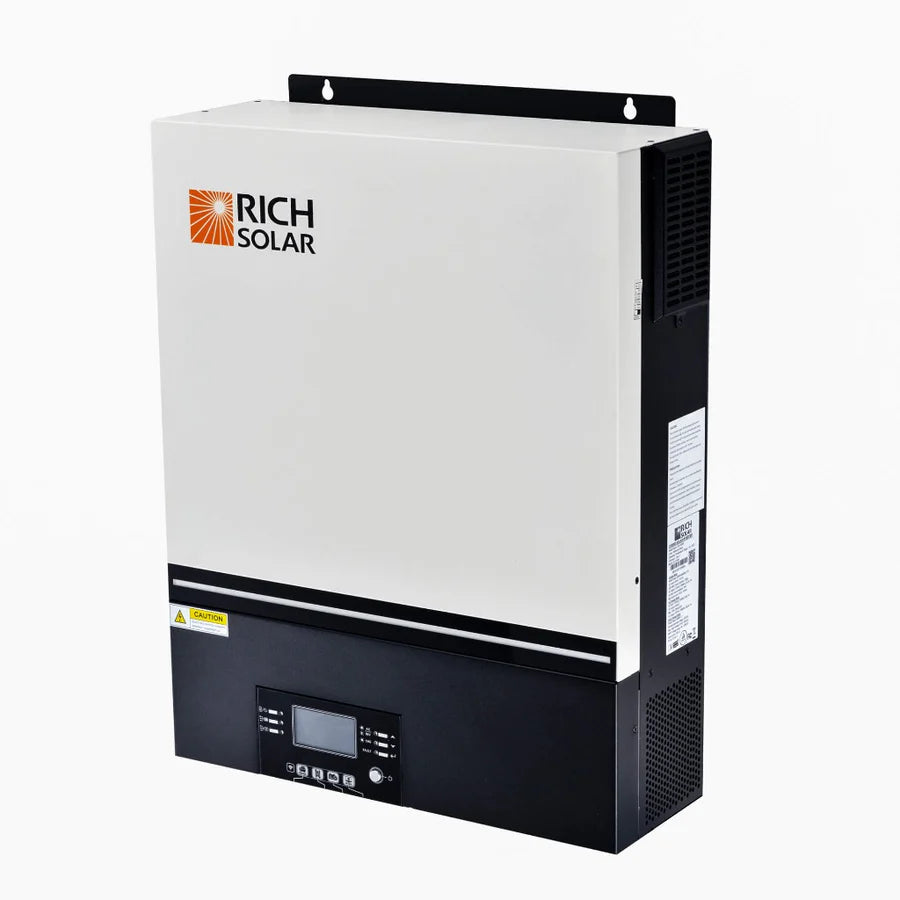

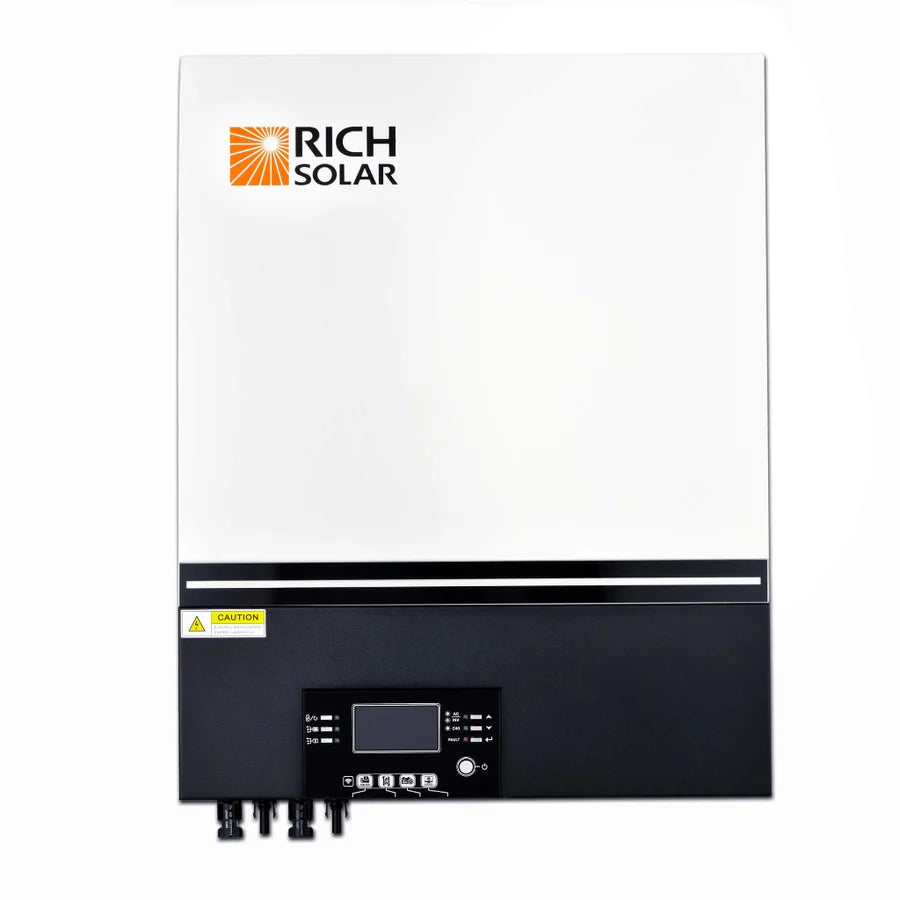

Rich Solar Nova 6548 | 48 V 6.5 kW Off-Grid Hybrid Inverter | RS-H6548

Rich Solar Nova 6548 | 48 V 6.5 kW Off-Grid Hybrid Inverter | RS-H6548

  • Free Shipping
  • Standard Shipping: 5–10 business days.
by Rich Solar
$1,299.99

Notify me when back in stock

The Rich Solar NOVA 6548 48 V Hybrid Inverter delivers 6.5 kW (6500 W) of reliable off-grid power for cabins, RVs, ADUs, and tiny homes. Built for seamless solar, battery, and generator integration, it provides high efficiency, quiet operation, and UL-certified safety in a compact design. Perfect for off-grid living or backup energy systems.

The NOVA 6548 Hybrid Inverter delivers 6,500 watts (6.5 kW) of clean, reliable off-grid power for cabins, campers, ADUs, and remote homes. Designed for durability and efficiency, this 48-volt inverter seamlessly integrates solar, battery, and generator inputs for uninterrupted energy independence.

Features

  • Pure Sine Wave Inverter
  • Configurable color with the built-in RGB LED bar
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Supports USB On-the-Go function
  • Built-in anti-dusk kit
  • Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
  • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
  • Configurable AC/PV output usage timer and prioritization
  • Configurable AC/Solar charger priority via LCD control panel
  • Configurable battery charging current based on applications via LCD control panel
  • Compatible with utility mains or generator power
  • Auto restart while AC is recovering
  • Overload/over temperature/short circuit protection

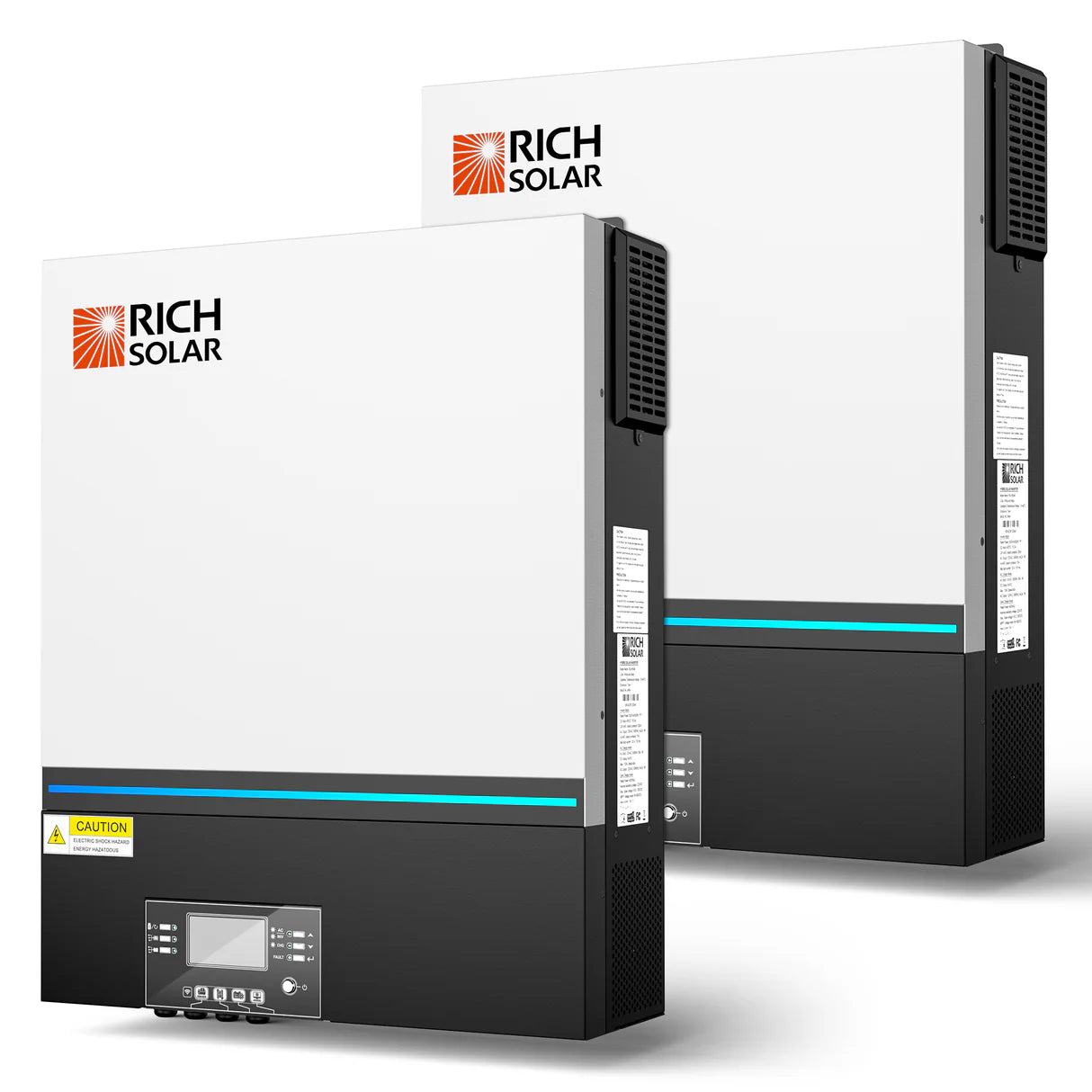

  • Parallel operation with 6 units
  • Smart battery charger design for optimized battery performance
  • Cold start function

Specifications

    • Model: RS-H6548
    • Rated Inverter Power: 6500VA/6500W
    • Parallel Capability: Yes, 6 units

  • Input

    • Voltage: 120 VAC
    • Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
    • Frequency Range: 50 Hz/60 Hz (Auto Sensing)

  • Output

    • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
    • Surge Power: 2* rated power for 5 seconds
    • Efficiency (Peak): 91%
    • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
    • Waveform: Pure Sine Wave
    • Optional DC Voltage: 12 VDC ± 7%, 100W

  • Battery

    • Battery Voltage: 48 VDC
    • Float Charging Voltage: 54 VDC
    • Overcharge Protection: 66 VDC

  • Solar Charger & AC Charger

    • Solar Charger Type: MPPT
    • Maximum PV Array Power: 8000W (4000W x 2)
    • MPPT Operating Voltage Range: 90 ~ 230 VDC
    • Maximum PV Array Open Circuit Voltage: 250 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 120A
    • Maximum Charge Current: 120A

  • Physical

    • Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
    • Net Weight: 40.6 lb
    • Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

  • Operating Environment

    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: -14°F to 104°F
    • Storage Temperature: 5°F to 140°F

  • Standard

    • Compliance Safety: UL 1741 by TUV
